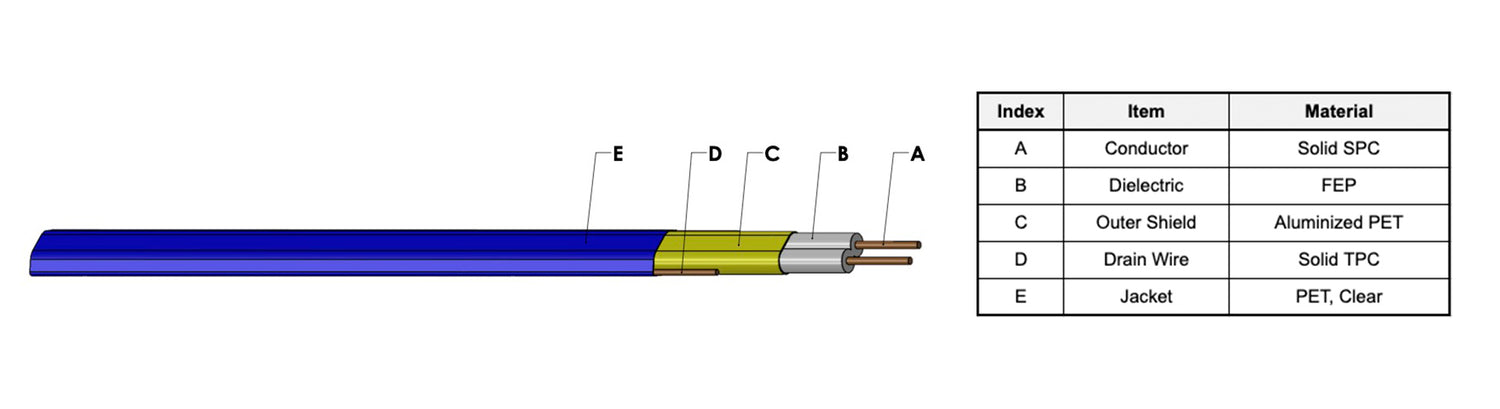

High-quality materials form the foundation of high-performance cables

• Solid Silver-Plated Copper (SPC) center conductors and drain wires
• High purity FEP dielectric
• Aluminum mylar tape shield
• Mylar tape jacket

Omnitek 30 AWG Twinax delivers excellent electrical characteristics

• Characteristic impedance of 100 ± 5Ω
• Velocity of Propagation of 70% nominal
• Rated frequency up to 40 GHz
• Withstand voltage of 1,500 Vrms inter-conductor, 1,000 Vrms conductor to
• shield

Designed for a wide range of applications and environments

• Operating temperature of -250C to 850C (-130F to 1850F)
• Nominal weight of 2.8 lbs per 1,000 ft
• Minimum bend radius of 0.195”
• RoHS 3 compliant

Omnitek is a USA facility

• Certified and inspected in the USA
• Stringent quality control creates reliability customers can trust
• Faster delivery versus oversea sources
• Easier to fulfill custom or just-in-time orders
