High-quality materials form the foundation of high-performance cables

• Solid Silver-Plated Copper alloy center conductors
• Low density expanded PTFE (ePTFE) dielectric
• ePTFE overall insulation
• Silver-Plated Copper alloy braided shield
• ePTFE tape jacket

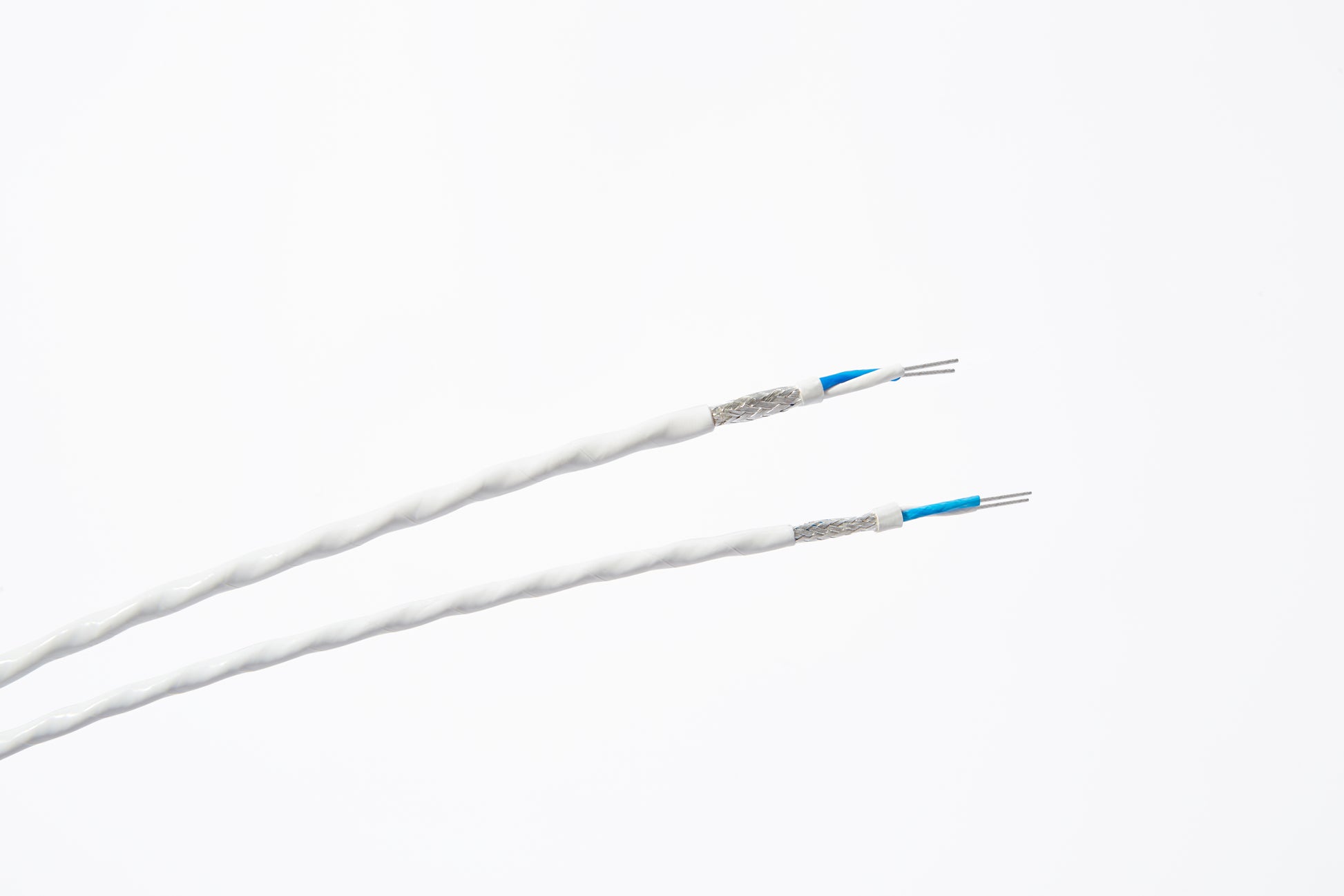

Omnitek 26 AWG Single Twisted Pair delivers excellent electrical characteristics

• Characteristic impedance of 100 ± 10Ω
• Insertion loss of 0.26 dB/ft @ 0.625 Ghz
• Insertion loss of 0.83 dB/ft @ 5.0 Ghz
• Rated frequency up to 5 GHz
• Withstand voltage of 500 Vrms for 1 minute

Designed for a wide range of applications and environments

• Operating temperature of -550C to 1650C (-670F to 3290F)
• Nominal weight of 0.17 oz/ft
• RoHS 3 compliant

Omnitek is a USA facility

• Certified and inspected in the USA
• Stringent quality control creates reliability customers can trust
• Faster delivery versus oversea sources
• Easier to fulfill custom or just-in-time orders
