Key Features

High-quality materials form the foundation of high-performance cables

Solid Silver-Plated Copper alloy center conductors
Low density expanded PTFE (ePTFE) dielectric
Silver-Plated Copper alloy pair shield
ePTFE pair insulation
Overall Silver-Plated Copper alloy braided shield
Overall ePTFE tape jacket

Omnitek 26 AWG Quad Pair delivers excellent electrical characteristics

Characteristic impedance of 100 ± 10Ω
Insertion loss of 0.26 dB/ft @ 0.625 Ghz
Insertion loss of 0.89 dB/ft @ 5.2 Ghz
Rated frequency up to 5.2 GHz
Withstand voltage of 500 Vrms for 1 minute

Designed for a wide range of applications and environments

Operating temperature of -200C to 1670C (-40F to 3290F)
Nominal weight of 1 oz/ft
RoHS 3 compliant

Omnitek is a USA facility

Certified and inspected in the USA
Stringent quality control creates reliability customers can trust
Faster delivery versus oversea sources
Easier to fulfill custom or just-in-time orders

Typical Applications

• High-speed digital bus wiring
• Aerospace
• Test and Measurement
• Space and satellite systems
• Defense
• Medical imaging
• Industrial automation and control

26 AWG Quad Pair, 100 Ohm

26 AWG Quad Pair, 100 Ohm

PN OMNI-MC4P-01

Available in stock

• Lightweight, chemically resistant, thermally stable
• Impedance (Ω): 100 Ohms
• Maximum intra-pair skew: < 3.05 ps/ft
• Cross talk <40 dB at 1, 2 and 5.2 Ghz
• Rated voltage: 150 V

Submit a Request for Purchase

An Omnitek Team Member will be in Touch Within 1–2 Business Days

Built Fast. Shipped Faster.

Custom Options Available

Contact us at (503) 208-5353

Key Features

High-quality materials form the foundation of high-performance cables

Solid Silver-Plated Copper alloy center conductors
Low density expanded PTFE (ePTFE) dielectric
Silver-Plated Copper alloy pair shield
ePTFE pair insulation
Overall Silver-Plated Copper alloy braided shield
Overall ePTFE tape jacket

Omnitek 26 AWG Quad Pair delivers excellent electrical characteristics

Characteristic impedance of 100 ± 10Ω
Insertion loss of 0.26 dB/ft @ 0.625 Ghz
Insertion loss of 0.89 dB/ft @ 5.2 Ghz
Rated frequency up to 5.2 GHz
Withstand voltage of 500 Vrms for 1 minute

Designed for a wide range of applications and environments

Operating temperature of -200C to 1670C (-40F to 3290F)
Nominal weight of 1 oz/ft
RoHS 3 compliant

Omnitek is a USA facility

Certified and inspected in the USA
Stringent quality control creates reliability customers can trust
Faster delivery versus oversea sources
Easier to fulfill custom or just-in-time orders

Typical Applications

• High-speed digital bus wiring
• Aerospace
• Test and Measurement
• Space and satellite systems
• Defense
• Medical imaging
• Industrial automation and control

Product Higlights

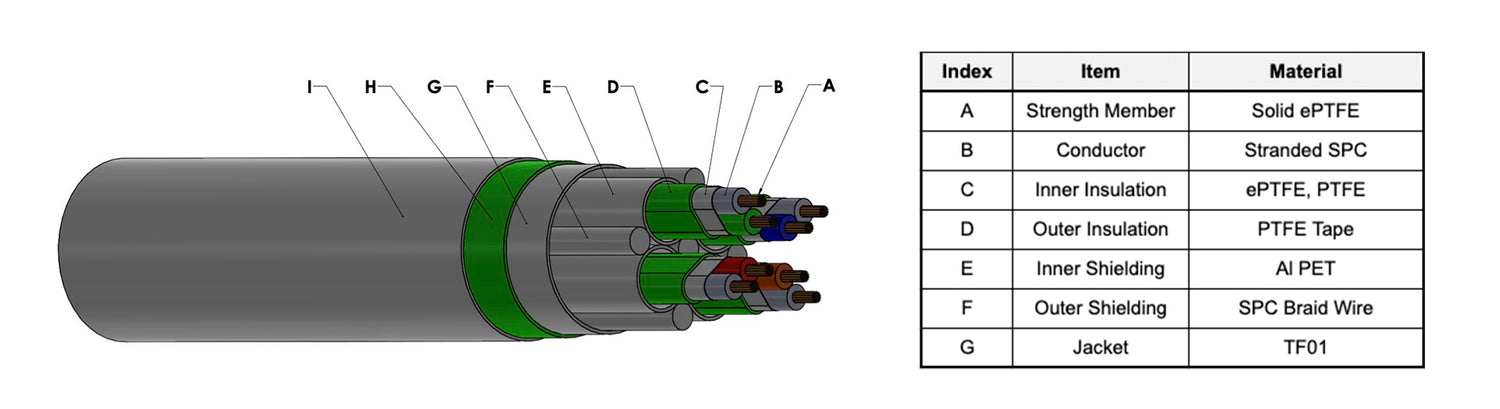

Cable Construction
