Key Features

High-quality materials form the foundation of high-performance cables

Solid Silver-Plated Copper (SPC) center conductors
Low density expanded PTFE (ePTFE) dielectric
ePTFE pair shield
Overall SPC braided shield
Overall extruded jacket

Omnitek 26 AWG Ethernet CAT6a delivers excellent electrical characteristics

Characteristic impedance of 100 ± 10Ω
Meets TIA 568AC.2 Category 6A requirements up to 60 meters
Rated frequency up to 500 MHz,

Designed for a wide range of applications and environments

Operating temperature of -550C to 2000C (-670F to 3920F)
Nominal weight of 0.48 oz/ft
RoHS 3 compliant

Omnitek is a USA facility

Certified and inspected in the USA
Stringent quality control creates reliability customers can trust
Faster delivery versus oversea sources
Easier to fulfill custom or just-in-time orders

Typical Applications

• High-speed networking (enterprise & data center)
• Aerospace
• Test and Measurement
• Space and satellite systems
• Defense
• Industrial automation and control

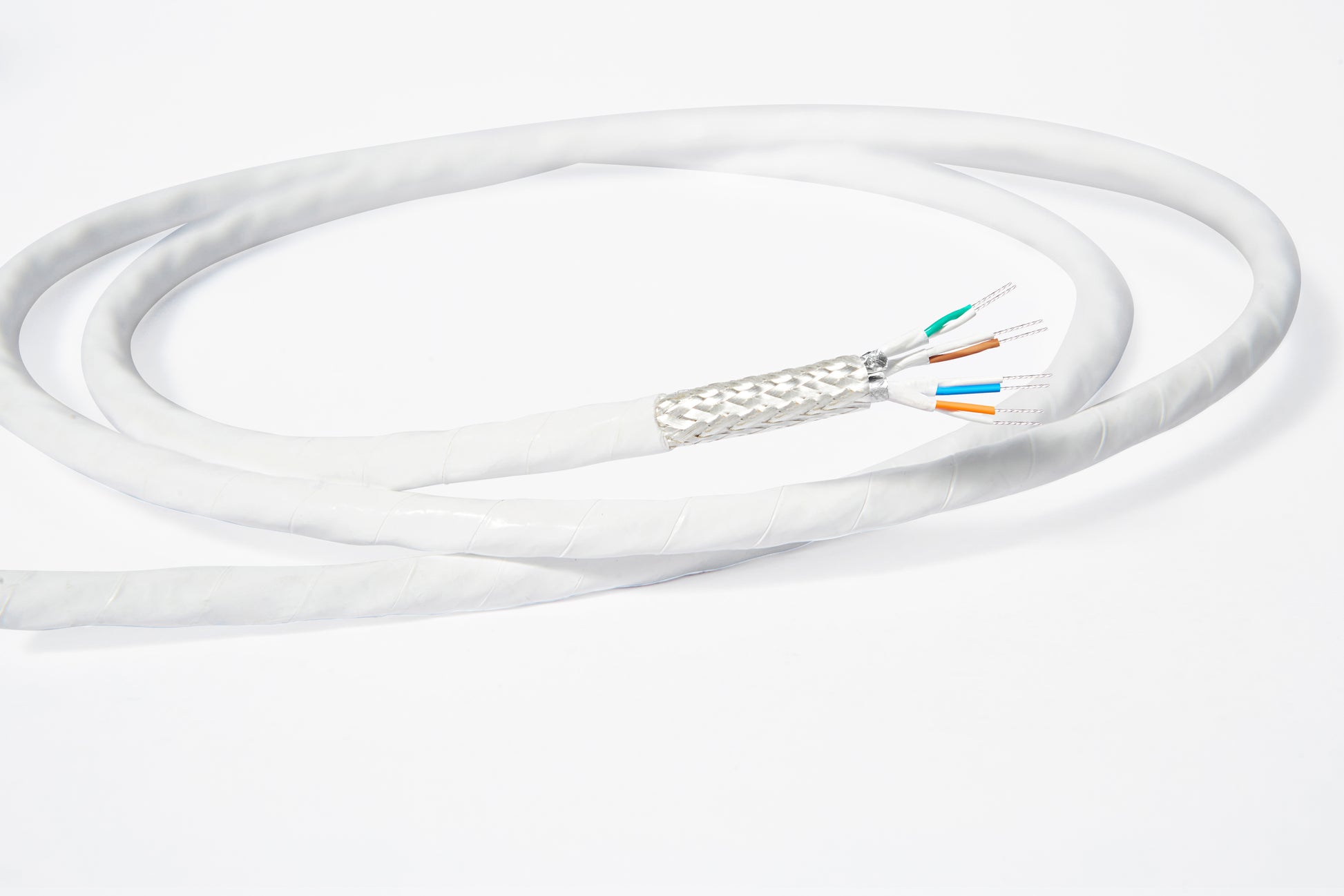

26 AWG Ethernet CAT6a

26 AWG Ethernet CAT6a

PN OMNI-MC4P-02

Available in stock

• Designed to meet Ethernet CAT6a requirements
• Supports frequencies up to 500 MHz
• Supports data rates up to 10 Gbps
• Impedance (Ω): 100 Ohms

Submit a Request for Purchase

An Omnitek Team Member will be in Touch Within 1–2 Business Days

Built Fast. Shipped Faster.

Custom Options Available

Contact us at (503) 208-5353

Key Features

High-quality materials form the foundation of high-performance cables

Solid Silver-Plated Copper (SPC) center conductors
Low density expanded PTFE (ePTFE) dielectric
ePTFE pair shield
Overall SPC braided shield
Overall extruded jacket

Omnitek 26 AWG Ethernet CAT6a delivers excellent electrical characteristics

Characteristic impedance of 100 ± 10Ω
Meets TIA 568AC.2 Category 6A requirements up to 60 meters
Rated frequency up to 500 MHz,

Designed for a wide range of applications and environments

Operating temperature of -550C to 2000C (-670F to 3920F)
Nominal weight of 0.48 oz/ft
RoHS 3 compliant

Omnitek is a USA facility

Certified and inspected in the USA
Stringent quality control creates reliability customers can trust
Faster delivery versus oversea sources
Easier to fulfill custom or just-in-time orders

Typical Applications

• High-speed networking (enterprise & data center)
• Aerospace
• Test and Measurement
• Space and satellite systems
• Defense
• Industrial automation and control

Product Higlights

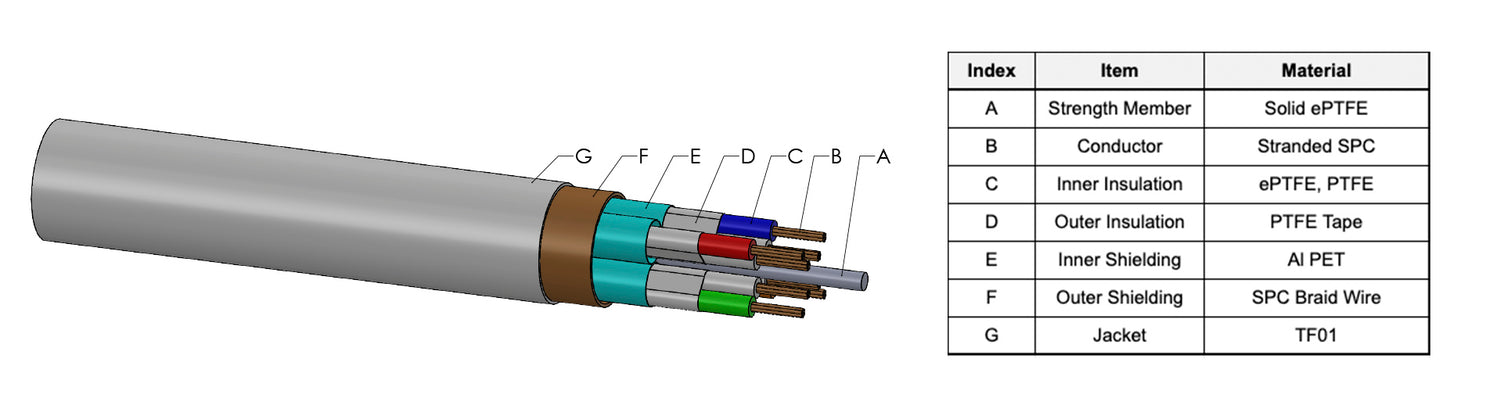

Cable Construction
