Key Features

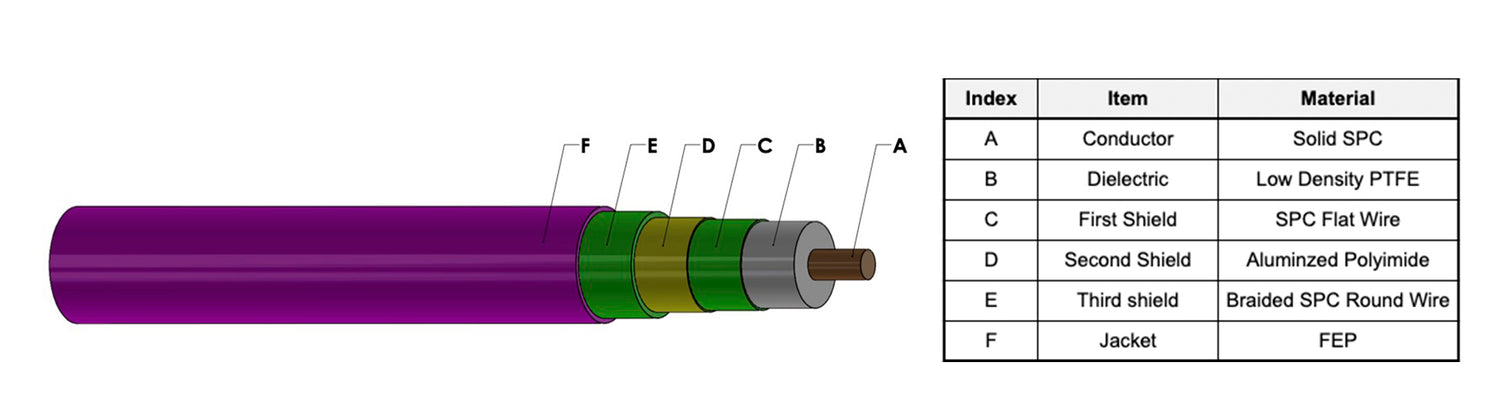

High-quality materials form the foundation of high-performance cables

Solid Silver-Plated Copper (SPC) center conductor
Low-density expanded PTFE (ePTFE) wrapped dielectric
SPC flat wire
Polyimide second shield
SPC braided shield
FEP jacket

Omnitek 195 Microwave Coax delivers excellent electrical characteristics

Characteristic impedance of 50 ± 2Ω
Velocity of Propagation of 80% nominal
Rated frequency up to 18 GHz
Exceptional stability with minimum bend radius of 1.0”

Designed for a wide range of applications and environments

Operating temperature of -550C to 2000C (-670F to 3920F)
Maximum weight of 0.59 oz/ft
RoHS 3 compliant

Omnitek is a USA facility

Certified and inspected in the USA
Stringent quality control creates reliability customers can trust
Faster delivery versus oversea sources
Easier to fulfill custom or just-in-time orders

Typical Applications

• RF Test and Measurement
• Aerospace (avionics, VHF/UHF, GPS)
• Defense (Radar, EW sub-systems)
• SATCOM (IF links)
• Telecom

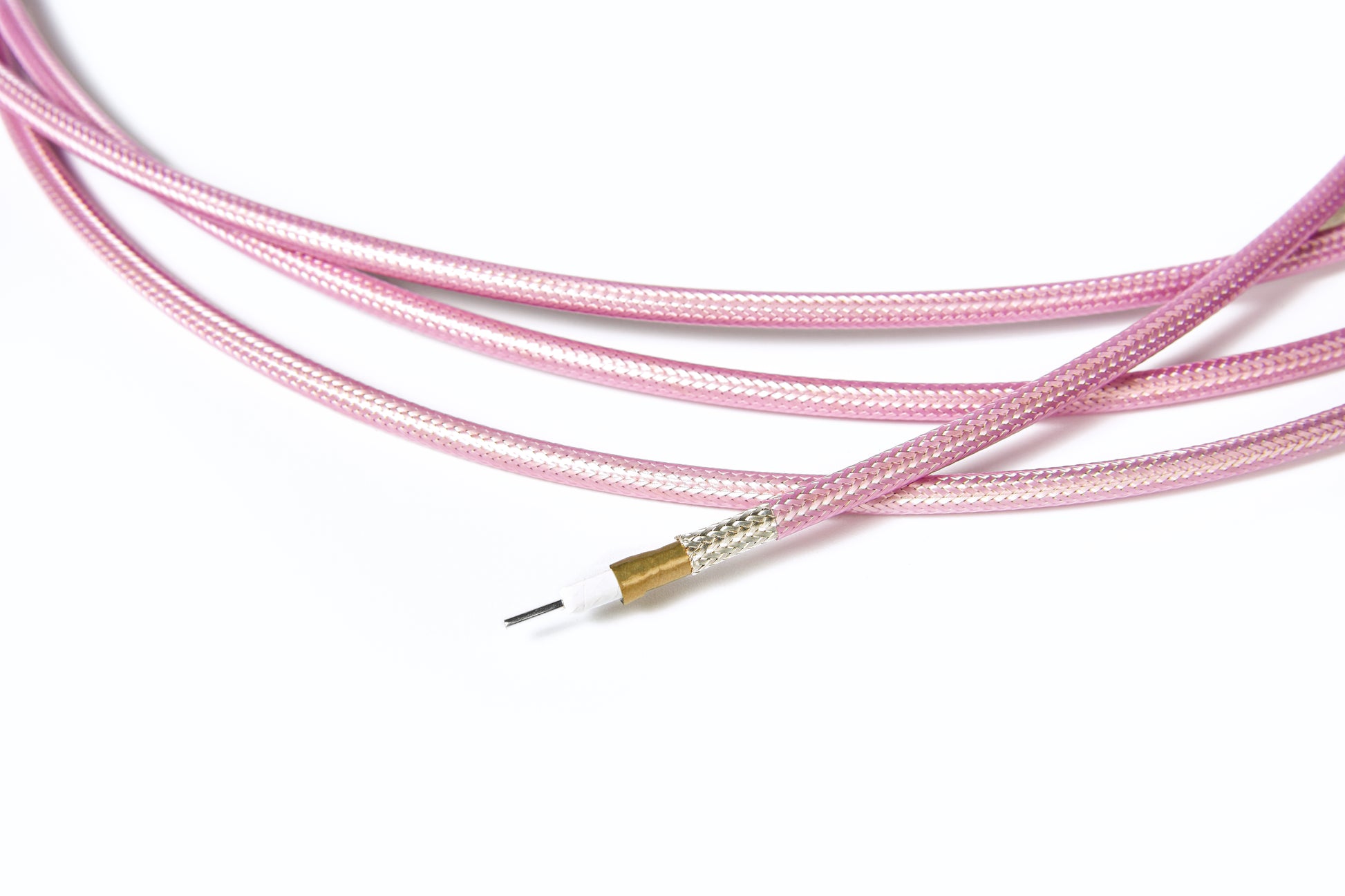

195 – Microwave Coax – 80%

Name: 195 – Microwave Coax – 80%
Brand: My Store
Availability: InStock

195 – Microwave Coax – 80%

PN OMNI-195E-01

Available in stock

• Better RF performance (loss and phase) within .195” footprint
• Impedance (Ω): 50 Ohms
• Velocity of Propagation: 80% nominal
• Maximum Frequency: 18 GHz
• Capacitance: 25.5 pF/ft

Submit a Request for Purchase

Submit Request

An Omnitek Team Member will be in Touch Within 1–2 Business Days

Built Fast. Shipped Faster.

Custom Options Available

Contact us at (503) 208-5353

Key Features

High-quality materials form the foundation of high-performance cables

Solid Silver-Plated Copper (SPC) center conductor
Low-density expanded PTFE (ePTFE) wrapped dielectric
SPC flat wire
Polyimide second shield
SPC braided shield
FEP jacket

Omnitek 195 Microwave Coax delivers excellent electrical characteristics

Characteristic impedance of 50 ± 2Ω
Velocity of Propagation of 80% nominal
Rated frequency up to 18 GHz
Exceptional stability with minimum bend radius of 1.0”

Designed for a wide range of applications and environments

Operating temperature of -550C to 2000C (-670F to 3920F)
Maximum weight of 0.59 oz/ft
RoHS 3 compliant

Omnitek is a USA facility

Certified and inspected in the USA
Stringent quality control creates reliability customers can trust
Faster delivery versus oversea sources
Easier to fulfill custom or just-in-time orders

Typical Applications

• RF Test and Measurement
• Aerospace (avionics, VHF/UHF, GPS)
• Defense (Radar, EW sub-systems)
• SATCOM (IF links)
• Telecom
