Key Features

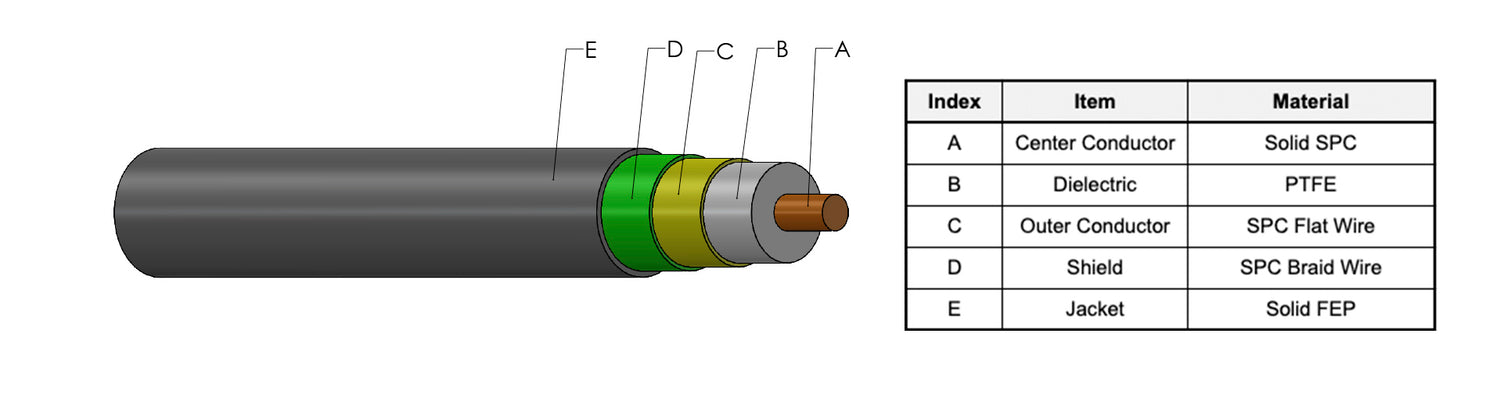

High-quality materials form the foundation of high-performance cables

Solid Silver-Plated Copper (SPC) center conductor
Low-density expanded PTFE (ePTFE) wrapped dielectric
SPC flat wire and braid shield
FEP jacket

Omnitek 190 Microwave Coax delivers excellent electrical characteristics

Characteristic impedance of 50 ± 2Ω
Velocity of Propagation of 83% nominal
Rated frequency up to 18 GHz
Exceptional stability with minimum bend radius of 1.0”

Designed for a wide range of applications and environments

Operating temperature of -550C to 2000C (-670F to 3920F)
Maximum weight of 0.59 oz/ft
RoHS 3 compliant

Omnitek is a USA facility

Certified and inspected in the USA
Stringent quality control creates reliability customers can trust
Faster delivery versus oversea sources
Easier to fulfill custom or just-in-time orders

Typical Applications

• RF Test and Measurement
• Aerospace (avionics, IFF, TACAN, VHF/UHF)
• Defense (EW, SIGINT)
• SATCOM (Ground, Flyaway)
• Telecom

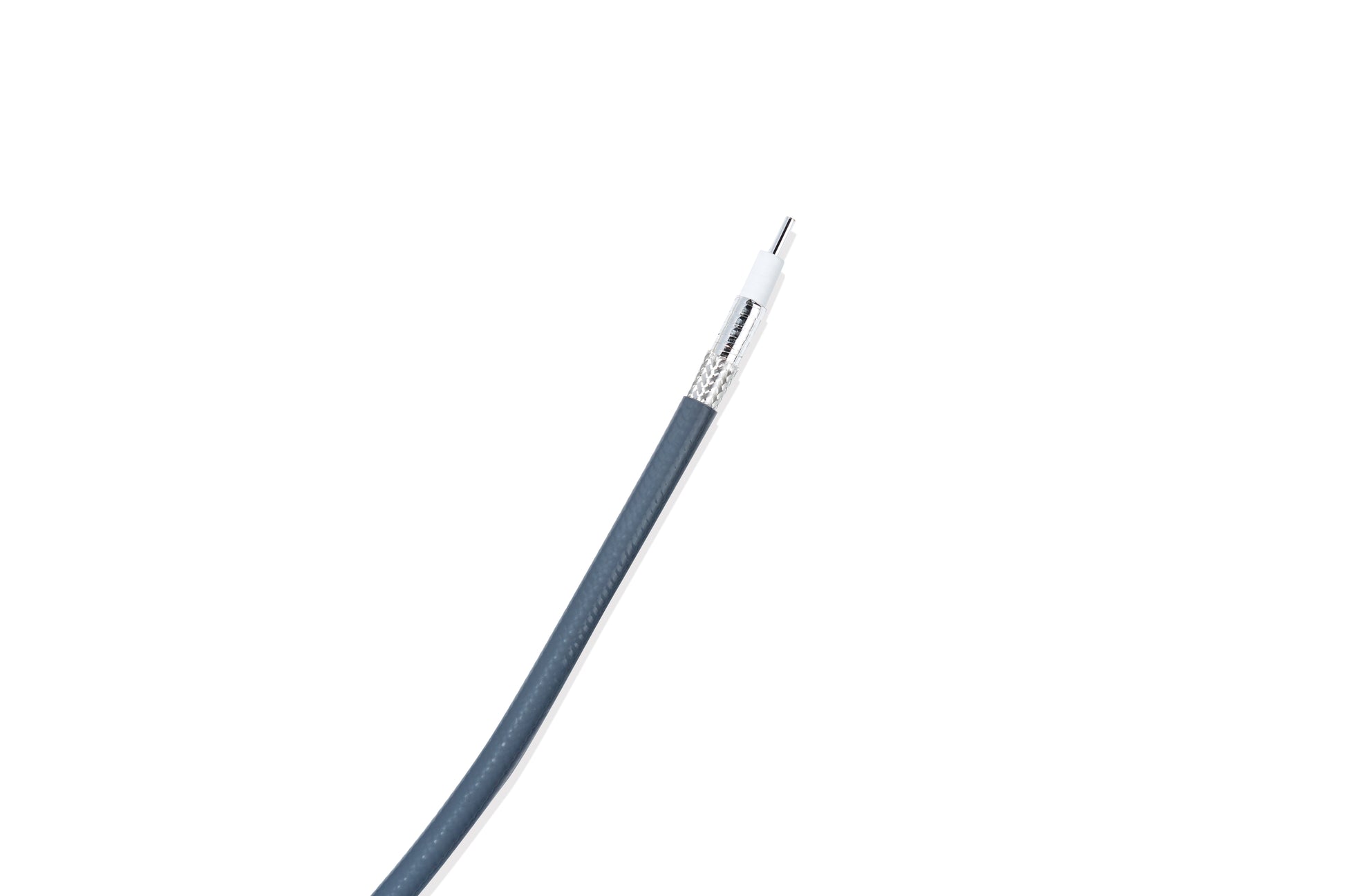

190 – Microwave Coax – 83%

Name: 190 – Microwave Coax – 83%
Brand: My Store
Availability: InStock

190 – Microwave Coax – 83%

PN OMNI-190E-01

Available in stock

• Exceptional power handling, low-loss, and compact size for integration
• Impedance (Ω): 50 Ohms
• Velocity of Propagation: 83% nominal
• Maximum Frequency: 18 GHz
• Capacitance: 24.3 pF/ft

Submit a Request for Purchase

Submit Request

An Omnitek Team Member will be in Touch Within 1–2 Business Days

Built Fast. Shipped Faster.

Custom Options Available

Contact us at (503) 208-5353
