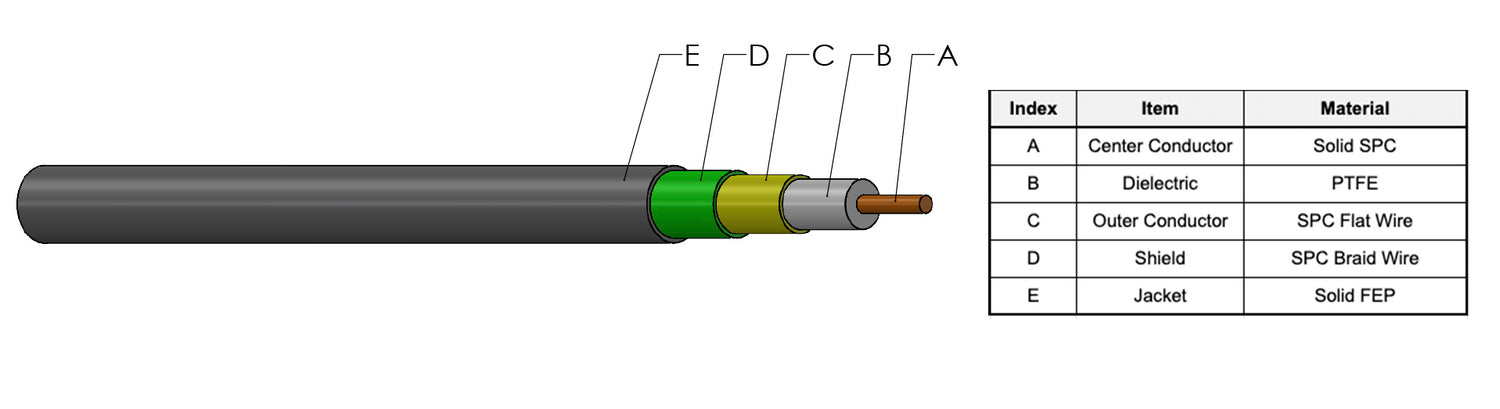

High-quality materials form the foundation of high-performance cables

• Solid Silver-Plated Copper (SPC) center conductor
• Low-density expanded PTFE (ePTFE) wrapped dielectric
• SPC flat wire and braid shield
• FEP jacket

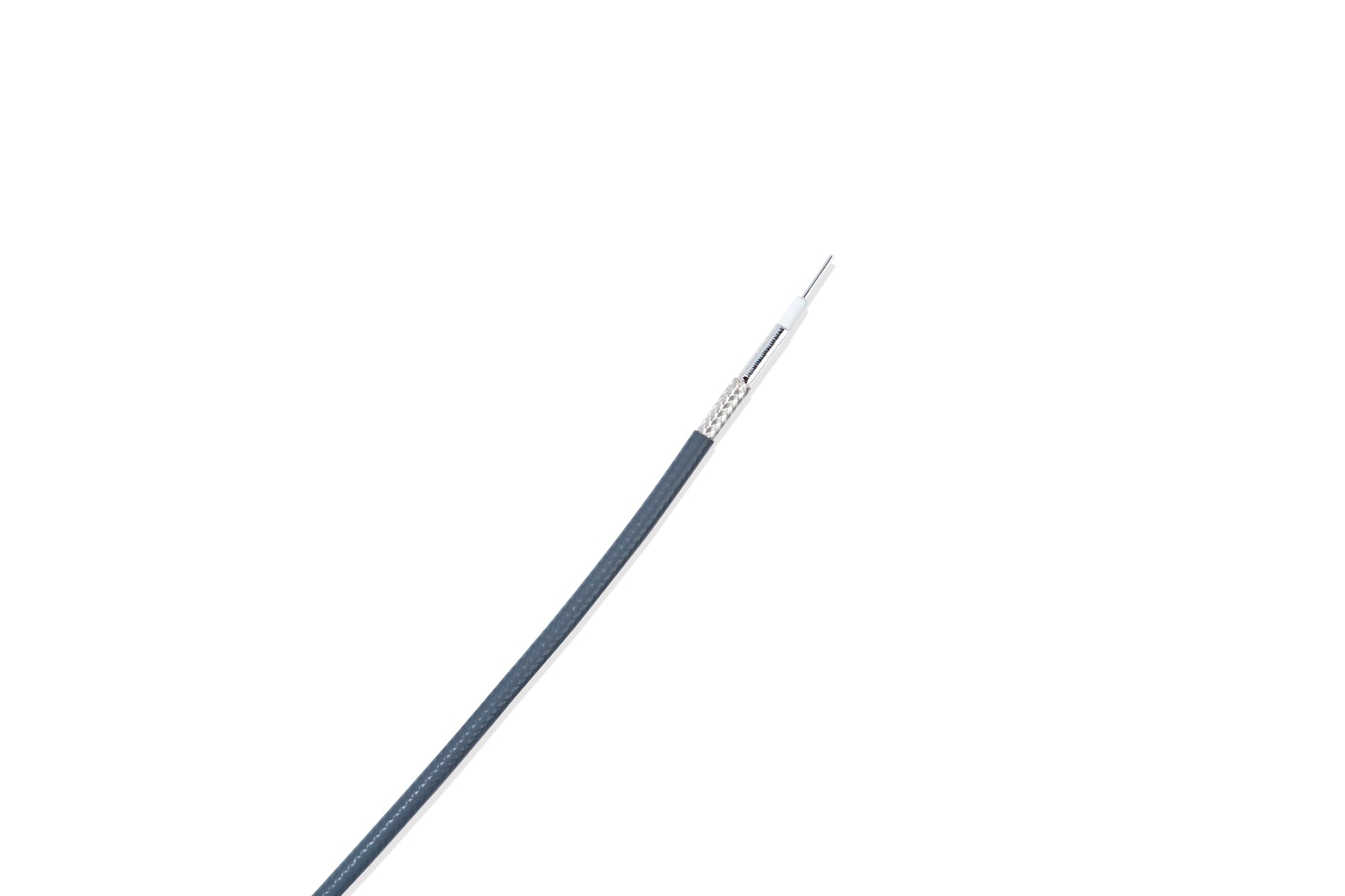

Omnitek 086 Microwave Coax delivers excellent electrical characteristics

• Characteristic impedance of 50 ± 2Ω
• Velocity of Propagation of 82% nominal
• Rated frequency up to 40 GHz
• Exceptional stability with bend radius 0.50” (static)

Designed for a wide range of applications and environments

• Operating temperature of -550C to 2000C (-670F to 3920F)
• Maximum weight of 0.172 oz/ft
• RoHS 3 compliant

Omnitek is a USA facility

• Certified and inspected in the USA
• Stringent quality control creates reliability customers can trust
• Faster delivery versus oversea sources
• Easier to fulfill custom or just-in-time orders
