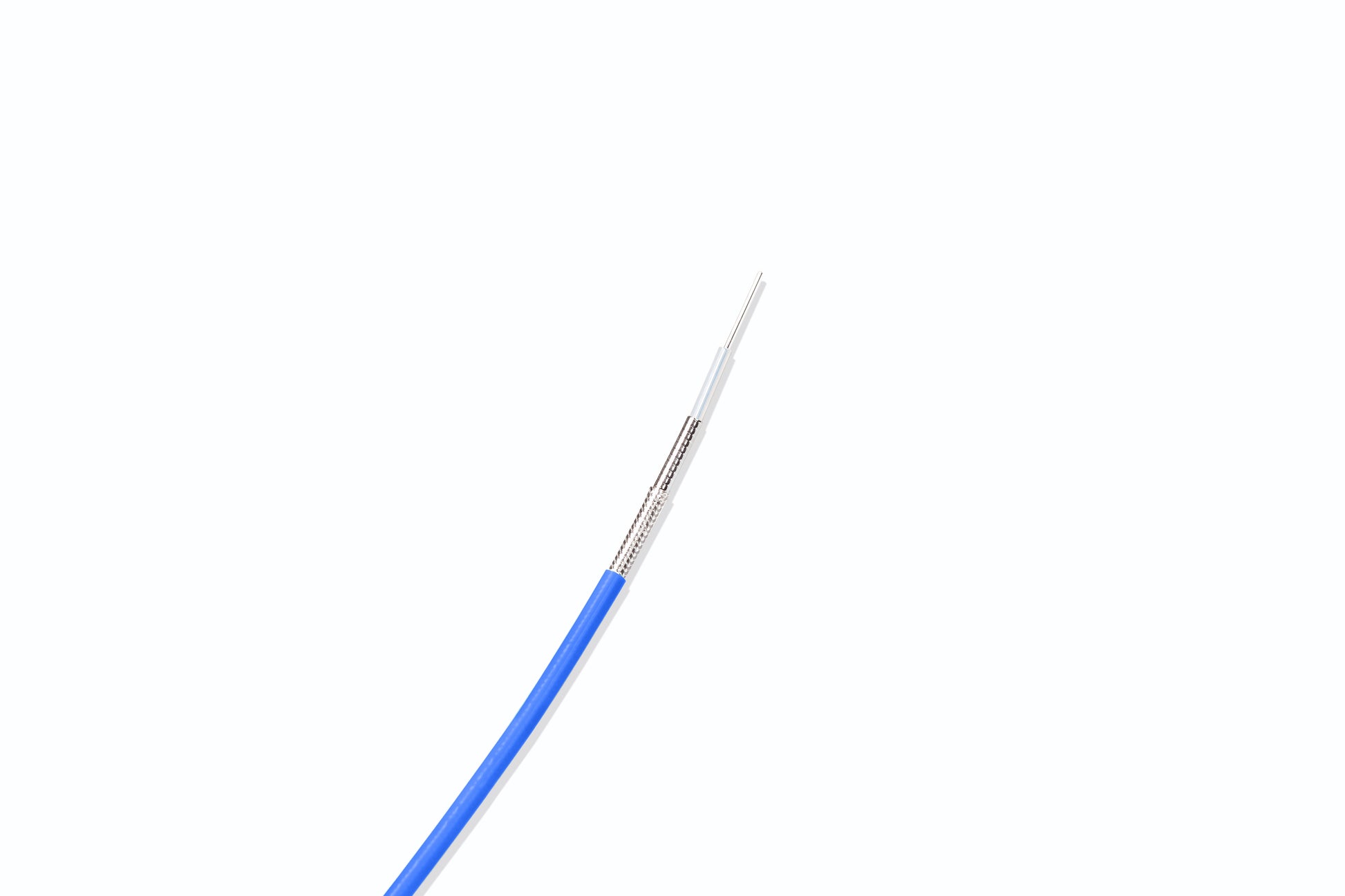

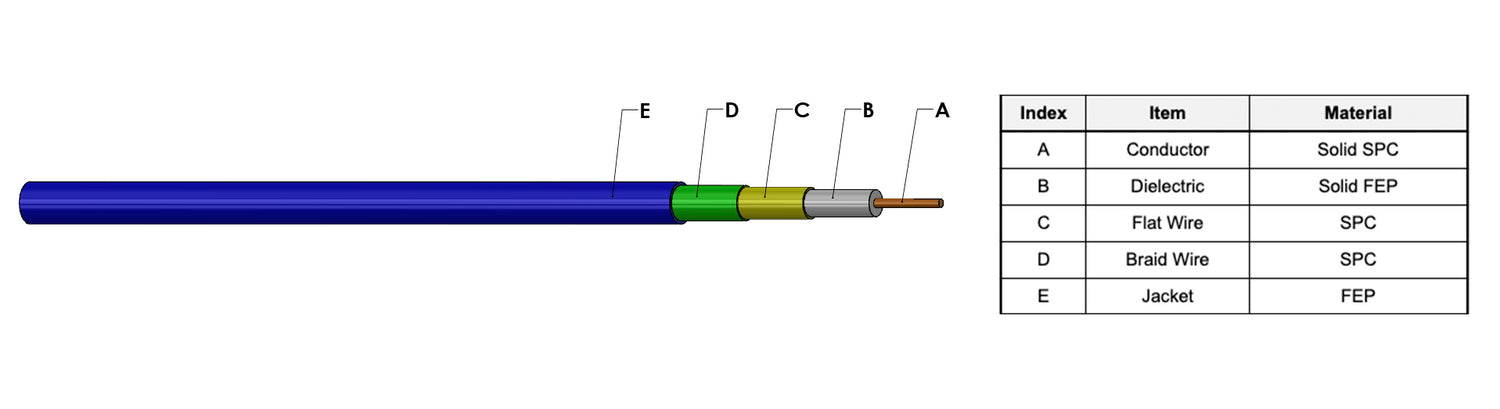

High-quality materials form the foundation of high-performance cables:

• Silver Plated Copper (SPC) center conductor
• High-purity fluorinated ethylene propylene (FEP)   dielectric
• SPC flat wire and braid shield
• FEP jacket

Omnitek 047 Microwave Coax delivers excellent electrical characteristics:

• Characteristic impedance of 50 ± 2Ω
• Velocity of Propagation of 70%
• Rated frequency up to 70 GHz typical
• Exceptional stability with bend radius 0.222” (static) and •.556” (dynamic)

Designed for a wide range of applications and environments:

• Operating temperature of -550C to 1250C (-670F to 2570F)
• Maximum weight of 0.061 oz/ft
• RoHS 3 and REACH compliant

Omnitek is a USA facility

• Manufactured and inspected in the USA
• Stringent Quality Control creates reliability customers can trust
• Faster delivery versus oversea sources
• Easier to fulfill custom or just-in-time orders
